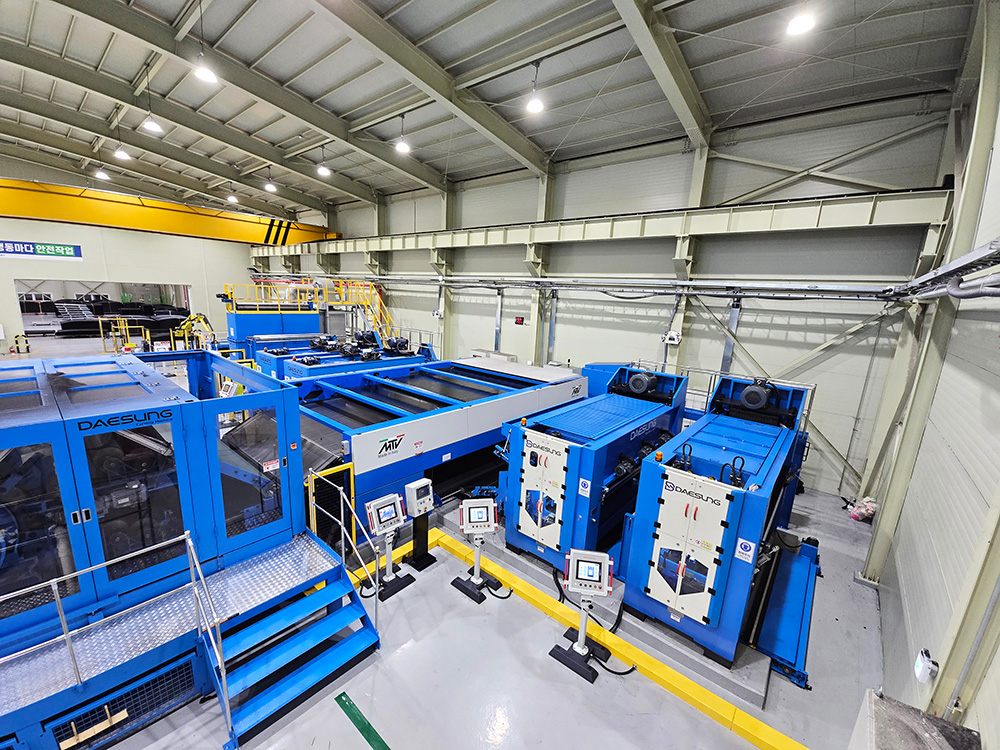

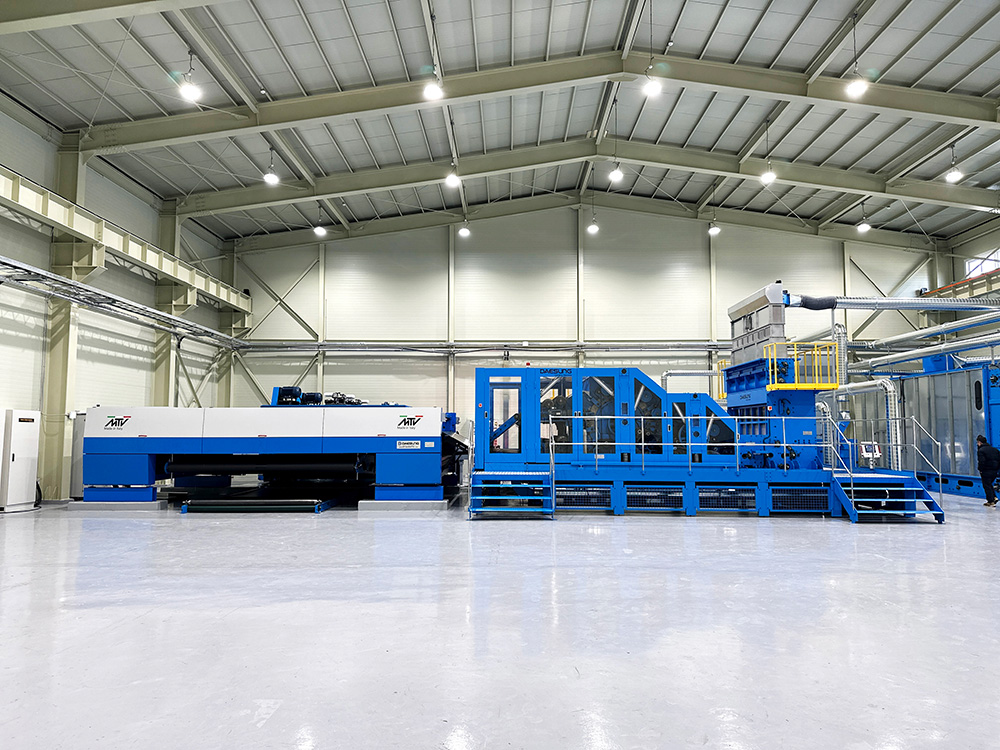

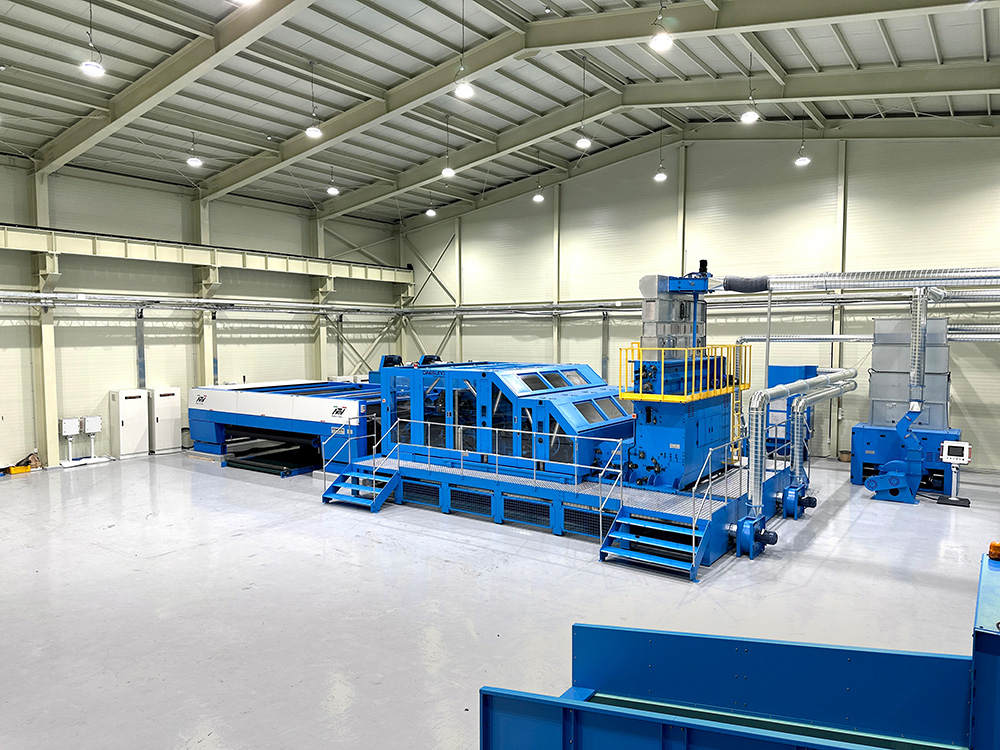

Cross Lapper (Made in Italy)
MTV-380M
Functions and Characteristics
- Under web-lapping conditions, high infeed speed and precise weight distribution are the most critical capabilities of a nonwoven cross lapper.
- To achieve this, the CL380M applies a patented belt Circuit that minimizes airflow which can cause web breakage.
- Electrical and mechanical profiling systems minimize weight deviation of the lapped web.
- The centering system continuously controls belt tracking, preventing conveyor mistracking.
- An integrated SINAMICS converter recovers regenerative braking energy, improving power efficiency.
Technical Data
- Max. Inlet Speed → up to 70 m/min
- Max Carriage Speed → up to 80 m/min
- Electrical & Mechanical Profiling Systems
- Belt Proportional Centering System
- Belt Balance Tensioning System
- SIEMENS High Efficiency Drivers for Multi-axis Control
- SINAMICS Regenerative Converters & Safety Functions
- 5 Brushless Motors
Product Details
| Model | CL380M |
|---|---|
| Max. Inlet Speed | 70 m/min |
| Max Carriage Speed | 80 m/min |
