제품 상세설명

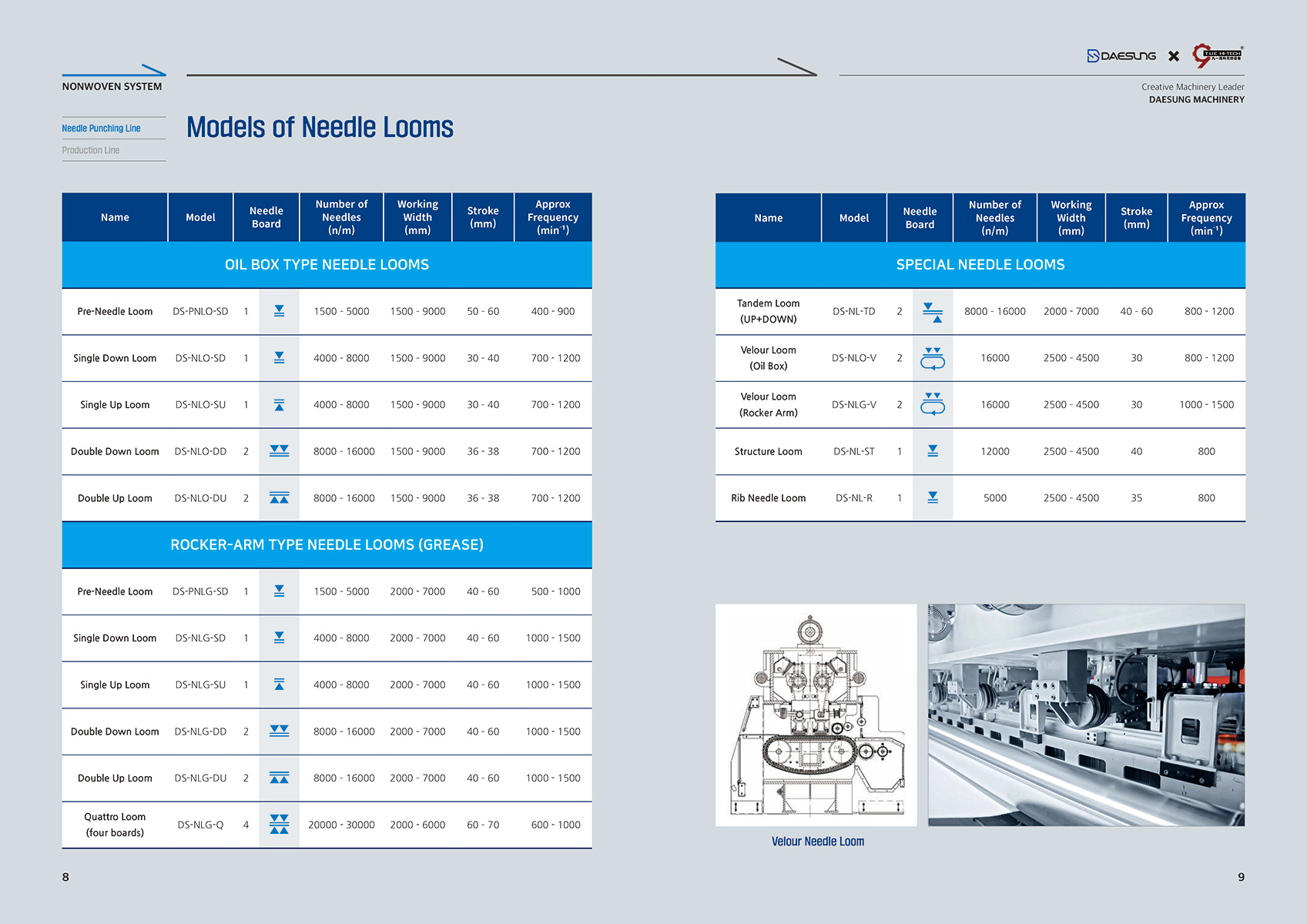

OIL BOX TYPE NEEDLE LOOMS

Name	Model	Needle Board		Number of Needles(n/m)	Working Width(mm)	Stoke(mm)	Approx Frequency(min⁻¹)
Pre-Needle Loom	DS-PNLO-SD	1		1500 - 5000	1500 - 9000	50 - 60	400 - 900
Single Down Loom	DS-NLO-SD	1		4000 - 8000	1500 - 9000	30 - 40	700 - 1200
Single Up Loom	DS-NLO-SU	1		4000 - 8000	1500 - 9000	30 - 40	700 - 1200
Double Down Loom	DS-NLO-DD	2		8000 - 16000	1500 - 9000	36 - 38	700 - 1200
Double Up Loom	DS-NLO-DU	2		8000 - 16000	1500 - 9000	36 - 38	700 - 1200

ROCKER-ARM TYPE NEEDLE LOOMS (GREASE)

Name	Model	Needle Board		Number of Needles(n/m)	Working Width(mm)	Stoke(mm)	Approx Frequency(min⁻¹)
Pre-Needle Loom	DS-PNLG-SD	1		1500 - 5000	2000 - 7000	40 - 60	500 - 1000
Single Down Loom	DS-NLG-SD	1		4000 - 8000	2000 - 7000	40 - 60	1000 - 1500
Single Up Loom	DS-NLG-SU	1		4000 - 8000	2000 - 7000	40 - 60	1000 - 1500
Double Down Loom	DS-NLG-DD	2		8000 - 16000	2000 - 7000	40 - 60	1000 - 1500
Double Up Loom	DS-NLG-DU	2		8000 - 16000	1500 - 9000	36 - 38	700 - 1200
Quattro Loom (four boards)	DS-NLG-Q	4		20000 - 30000	2000 - 6000	60 - 70	600 - 1000

SPECIAL NEEDLE LOOMS

Name	Model	Needle Board		Number of Needles(n/m)	Working Width(mm)	Stoke(mm)	Approx Frequency(min⁻¹)
Tandem Loom (UP+DOWN)	DS-NL-TD	2		8000 - 16000	2000 - 7000	40 - 60	800 - 1200
Velour Loom (Oil Box)	DS-NLO-V	2		16000	2500 - 4500	30	1000 - 1500
Velour Loom (Rocker Arm)	DS-NLG-V	2		12000	2500 - 4500	40	800
Structure Loom	DS-NL-ST	1		12000	2500 - 4500	40	800
Rib Needle Loom	DS-NL-R	1		5000	2500 - 4500	35	800
