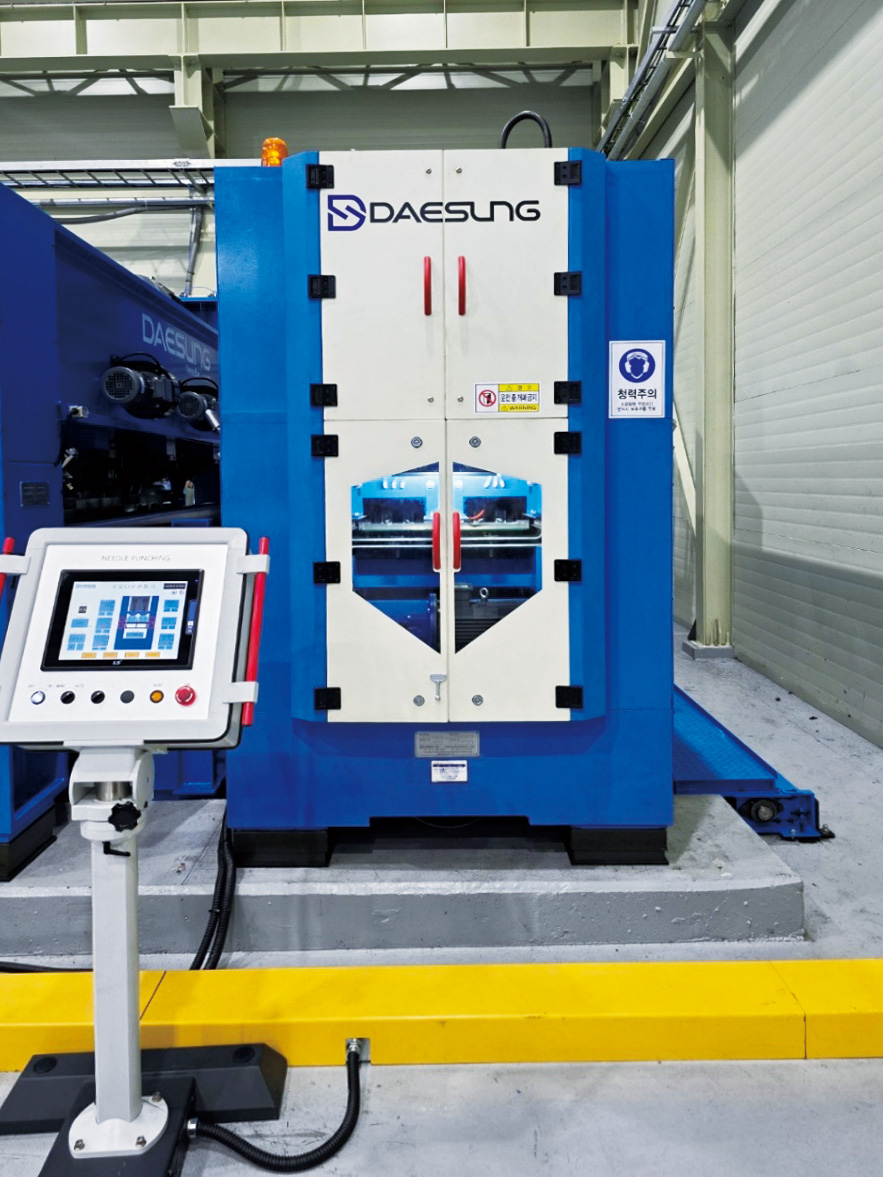

Oil Box Needle Loom
DS-NLO
Functions and Characteristics

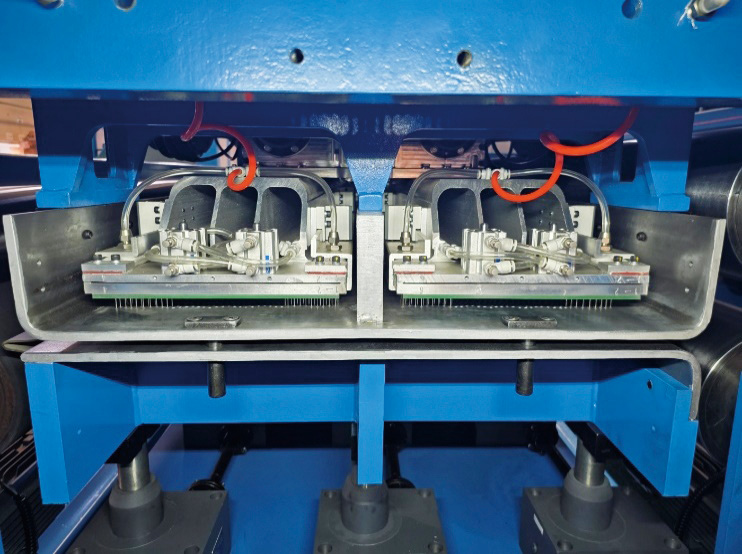

- The fabric delivered from the previous loom is punched by the needle board in either the Down or Up direction, enhancing fabric bonding strength and forming nonwoven materials with uniform thickness.
- The bearing housing supporting the crankshaft is simultaneously machined, ensuring optimal concentricity for high-speed needle punching.
- It is an oil lubrication system equipped with a high capacity oil pump, maximizing crank lubrication for smooth needle performance.
- Equipped with special spring anti-vibration pads and a radiator-type cooler, the machine offers various options for optimal performance.
Product Details
| Specifications | Single Down / Up | Double Down / Up |
|---|---|---|
| Working Width | 2000 – 9000 mm | 2000 – 9000 mm |
| Stroke | 30 – 65 mm | 30 – 65 mm |
| Frequency | 700 – 1200 RPM | 700 – 1200 RPM |

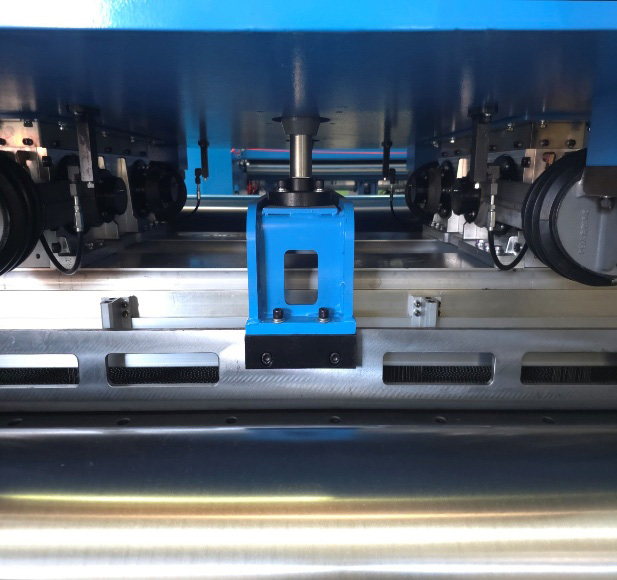

Aluminium Alloy Needle Beam
